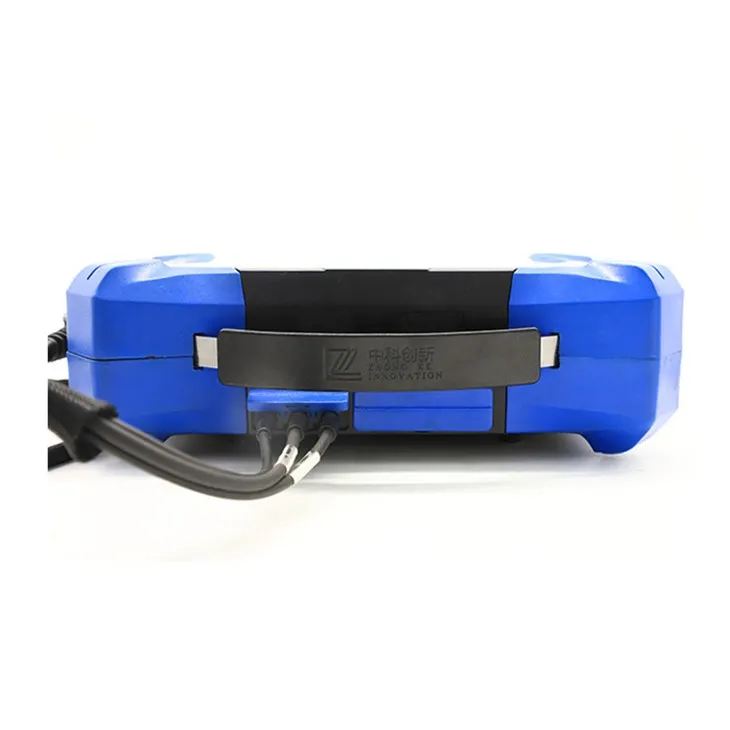

Products Description
The HS PA30-E represents a leading phased array detector, boasting the capacity for complete focalization through a remarkable array of up to 64 elements. This configuration ensures its suitability for addressing intricate phased-array detection, while simultaneously processing detection data in real-time.
Its adaptability extends to accommodating two sets of TOFD inspection channels, enabling the seamless integration of dual-phased array TOFD imaging. Furthermore, this advanced system has the capability to perform comprehensive scans and inspections of welds encompassing thicknesses of up to 100mm in a single operation.
Features
HSPA30-E includes the features as below:
●The focus law possesses the versatility to accommodate numerous PA scanning techniques, enabling simultaneous scanning and imaging operations.
●With a dual TOFD channel feature, allowing for the integration of dual-phased array TOFD imaging (PAUT).
●Using dual linear array (DLA) and double-sided array (DMA) technology to enhance the detection capabilities for austenitic stainless steel.
●Facilitate the output of multi-channel video display signals to various screen displays, with accompanying control and feedback mechanisms.
●Integrate a dual-axis encoder interface, empowering two-dimensional corrosion C-scan and wheel probe inspections.
●Ultilizing high-speed network transmission capabilities to achieve real-time data uploads and downloads.
Application Area
The HSPA30-E instrument finds application in the following domains:
Utilize phased array technology for inspecting plates, pipes, and welds.
Incorporate a 2x32 dual-linear array, along with a double-sided array, to enhance the detection capabilities for austenitic stainless steel. Primarily designed for TFM phased array inspection of intricate structures or materials, including but not limited to PE pipe electric, composite materials, TKY butt welds, flanges, and blades.
Technical Parameter
|
Phased Array Parameter |
|||
|
Parameter classification |
Parameter remarks |
Phased array channel |
Conventional channel |
|
PA/UT configuration |
Receive/transmit |
32/128 |
4-channel TOFD (2 pairs of pitch-catch) |
|
Pulser |
Pulse voltage |
50V-100V Continuously adjustable |
100V-350V Continuously adjustable |
|
Pulse excitation method |
Negative square wave |
Negative square wave |
|
|
Pulse width |
30ns~500ns/2.5ns |
30ns~500ns/2.5ns |
|
|
Pulse rise time |
<8ns |
<15ns |
|
|
Repetition frequency |
200Hz -20KHz |
100Hz -1KHz |
|
|
Delay accuracy |
0-20μs/2.5ns |
0-655μs/10ns |
|
|
Transmit impedance |
200Ω |
500/25Ω |
|
|
Receiver |
Gain range |
0~80dB |
0~110dB |
|
System bandwidth |
0.5-20MHz |
0.5-15MHz |
|
|
Receive delay |
0-50μs/10ns |
50μs/5ns |
|
|
Data acquisition |
Sampling Rate |
100MHz/10bits |
200MHz/10bits |
|
Maximum A-scan length |
8192 |
2048 |
|
|
Focus mode |
Normal/dynamic/full range |
Normal |
|
|
Focus type |
Depth/sound path/horizontal |
Sound path |
|
|
Scan and display |
Detection wave |
Positive detection, negative detection, full detection, radio frequency |
Positive detection, negative detection, full detection, radio frequency |
|
Scan type |
S Scan/L Scan/Composite Scan |
A scan |
|
|
Display mode |
A/B/C/L/S/3D |
A/B/C |
|
|
Programmable TCG |
Number of points |
32 |
32 |
|
Maximum gain |
40 dB, Gain step is 0.1 dB |
40dB |
|
|
Maximum gain slope |
40 dB/μs |
40 dB/μs |
|
|
Data storage |
SSD |
256G |
|
|
Monitor |
Screen size |
10.1" |
|
|
Resolution |
1280x800 |
||
|
Touch screen type |
Capacitive touch screen |
||
|

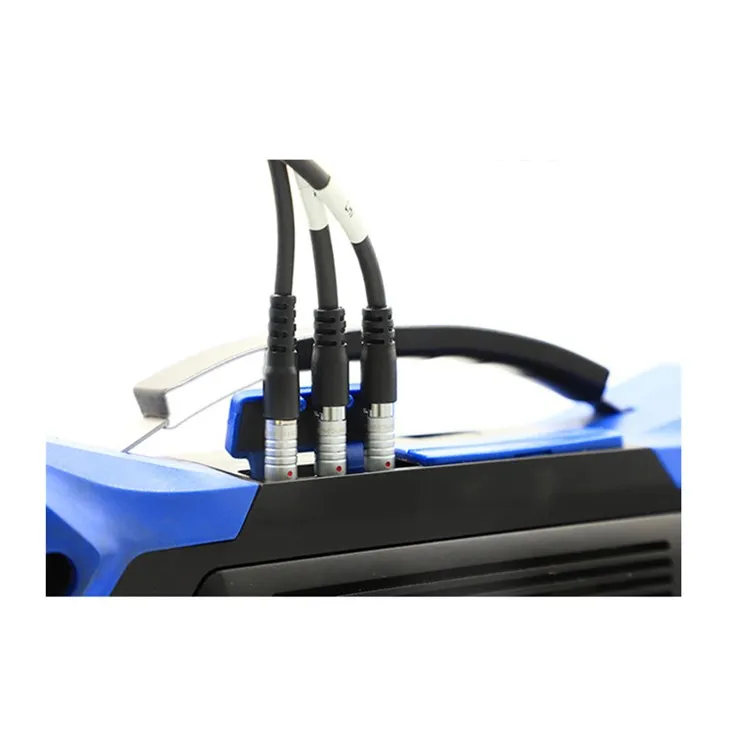

I/O interface |
USB |
USB3.0/ USB2.0 |
|
|
Ethernet |
1000Mb/s |
||
|
Video output mode |
HDMI |
||
|
Encoder |
ODU-7PIN Dual encoder |
||
|
Language |
Chinese / English |
||
|
Power supply |
DC supply voltage |
DC15V |
|
|
Battery |
11.1V-17AH |
||
|
Continuous working time |
No less than 4 hours |
||
|
Total Weight |
The whole machine without a battery is 3.6kg, battery 900g |
||
|
Overall size |
340mmx230mmx100mm |
||
